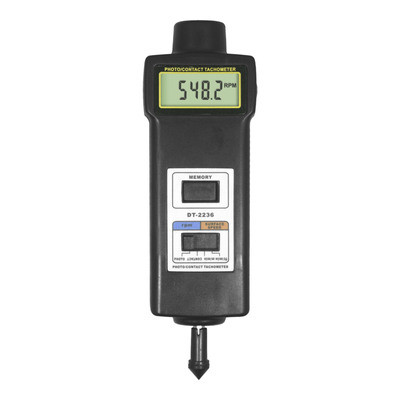

Tachometer DT-2236

Name: Tachometer DT2236
Brand: iqualitrol
Price: 1 USD

Brand Name : iqualitrol

Model Number : DT-2236

Certification : CE

Place of Origin : DONGGUAN

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 10 work days

Packaging Details : Carton box

Range : Surface Speed 0.05~1999,9 m/min 0.2~6560 ft/min

Accuracy : ±(0.05%n+1d)

Sampling Time : 1.0 s(Over 60 r/min)

Memory : Max / Min / Last Value

Contact Now

Spec:Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washing-machine, automobile, airplane, steamer

Features

* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).

* Digital display with no guessing errors.

* Wide measuring range and high resolution.

* The last value / max. value / min. value will be automatically stored in memory.

* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.

Model & Applications

Model	Photo	Contact	Surface Speed	Frequency	Cycle	Pulse Times	Pulse Distance
DT-2859	√	√	√	√	√	√	√
DT-2236	√	√	√	—	—	—	—
DT-2858	√	√	√	—	—	—	—
DT-2857	√	—	—	—	—	—	—
DT-2856	√	√	—	—	—	—	—

Specifications

Model		DT-2236	DT-2858	DT-2857	DT-2856
		DT-2236L(Laser Type)
Range	Laser	2.5~99,999r/min
	Contact	0.5~19,999r/min		-------	0.5~19,999r/min
	Surface Speed	0.05~1999,9 m/min		-------	-------
		0.2~6560 ft/min		-------	-------
Resolution	Tachometer	0.1 r/min(0.5~999.9 r/min)
		1 r/min(Over 1000 r/min)
	Surface Speed	0.01 m/min(0.05~99.9 m/min)
		1 m/min(Over 100 m/min)
		0.1 ft/min(0.1~999.9 ft/min)
		1 ft/min(Over 1000 ft/min)
Accuracy		±(0.05%n+1d)
Sampling Time		1.0 s(Over 60 r/min)
Test Range Select		Automation
Memory		Max / Min / Last Value
Time Base		Quartz Crystal
Laser Tach Detecting Distance		50~150mm/2~6inch(Typical),Max,300mm/12inch		50~250mm/2~10inch(Typical),Max600mm/14 inch	50~150mm/2~6inch(Typical),Max300mm/12inch
Power Supply		80mA(Testing)
Dimensions		0~50ºC
Weight		4x1.5V AA Size(UM-3)Battery
Standard Accessories		215x64x38mm	215x74x32mm	145x74x32mm	215x74x32mm
		300g	280g	260g	280g
		Main Unit
		Surface Speed Test Wheel(AS35C)		-------	-------
		Cone Adapter(AS35A)		-------	Cone Adapter(AS35A)
		Funnel Adapter(AS35B)		-------	Funnel Adapter(AS35B)
		Reflective Tape 350mm
		Carrying Case(B01)
		Operation Manual
